Max. Rpm: | 24000 | Material: | PCD Tips |
---|

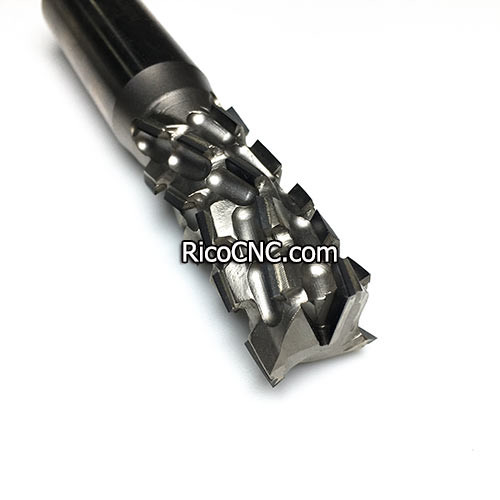

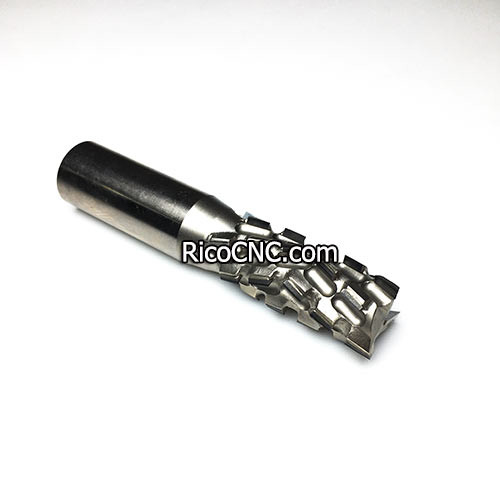

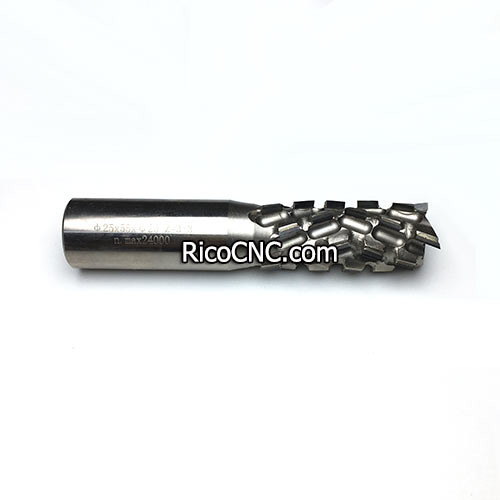

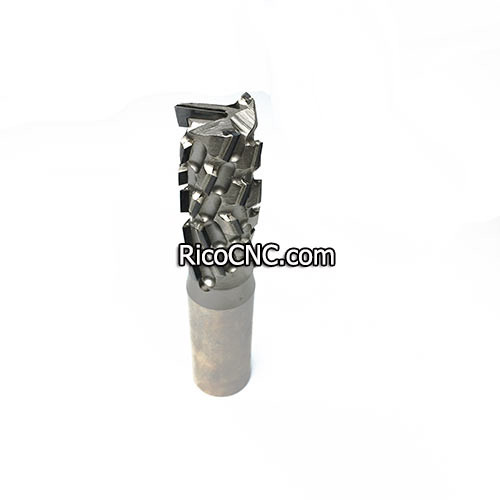

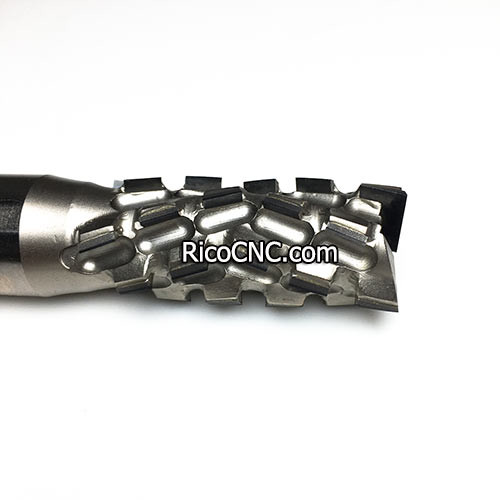

Chipboard Particle Board PCD Diamond Cutting Bit Z=3+3 Woodworking Tools
This diamond router bits are ideal for contouring and sizing. Machining operations on unpolished chipboard, laminated chipboard and faced MDF panels.
Chipboard Cutting PCD Router Bits Features:
• PCD tips
• carbide plunging tip
• Positive and negative shear angle
• Max. rpm: 24,000
• Excellent for machining faced particleboard panels and faced MDF.
• Ideal for nesting.
• Extremely high forward feed speed.
• Low noise levels.
• Diamond H3.5 sharpens up to 6 times.
• 50 times higher performance compared to hard metal cutters, thanks to the special diamond • formula: best value for money!
• Improved cutting quality: Top and bottom side.
Suitable for: particleboard, mdf, hdf, laminated bi-laminated mdf hdf, laminated bi-laminated particleboard.
Diamond bits for Particle Board Sizes:
Item No | CED(mm) | CEL(mm) | SHK(mm) | OVL(mm) | Teeth No. Z | Teeth Height: H |
F008 | 12 | 25 | 12 | 70 | 3+3 | 4 |
F010 | 20 | 28 | 20 | 90 | 3+3 | 4 |
F020 | 20 | 37 | 20 | 96 | 3+3 | 4 |
F030 | 20 | 45 | 20 | 105 | 3+3 | 4 |
F040 | 20 | 28 | 25 | 96 | 3+3 | 4 |
F050 | 20 | 37 | 25 | 105 | 3+3 | 4 |
F060 | 20 | 45 | 25 | 105 | 3+3 | 4 |
F070 | 25 | 28 | 25 | 96 | 3+3 | 4 |
F080 | 25 | 37 | 25 | 105 | 3+3 | 4 |
F090 | 25 | 45 | 25 | 113 | 3+3 | 4 |
F100 | 25 | 55 | 25 | 123 | 3+3 | 4 |
Rico also can supply a range of CNC router bits, PCD straight diamond bits, 1 flute spiral diamond bits, 2 flutes spiral diamond bit, 3 flutes spiral diamond bit, etc.
